The highest density audio decoder in the market.

Q9X-D Audio Decoder

The Q9X-D Audio Decoder enables you to decode up to 16 digital stereo channels (or 8 analog ones). It is possible to decode elementary streams as well as DVB compliant transport streams. Input signals coming via IP can be handled and decoded.

Several ordering options are available to adapt the audio input / output configuration to the customer´s requirements in a flexible way.

Our Products

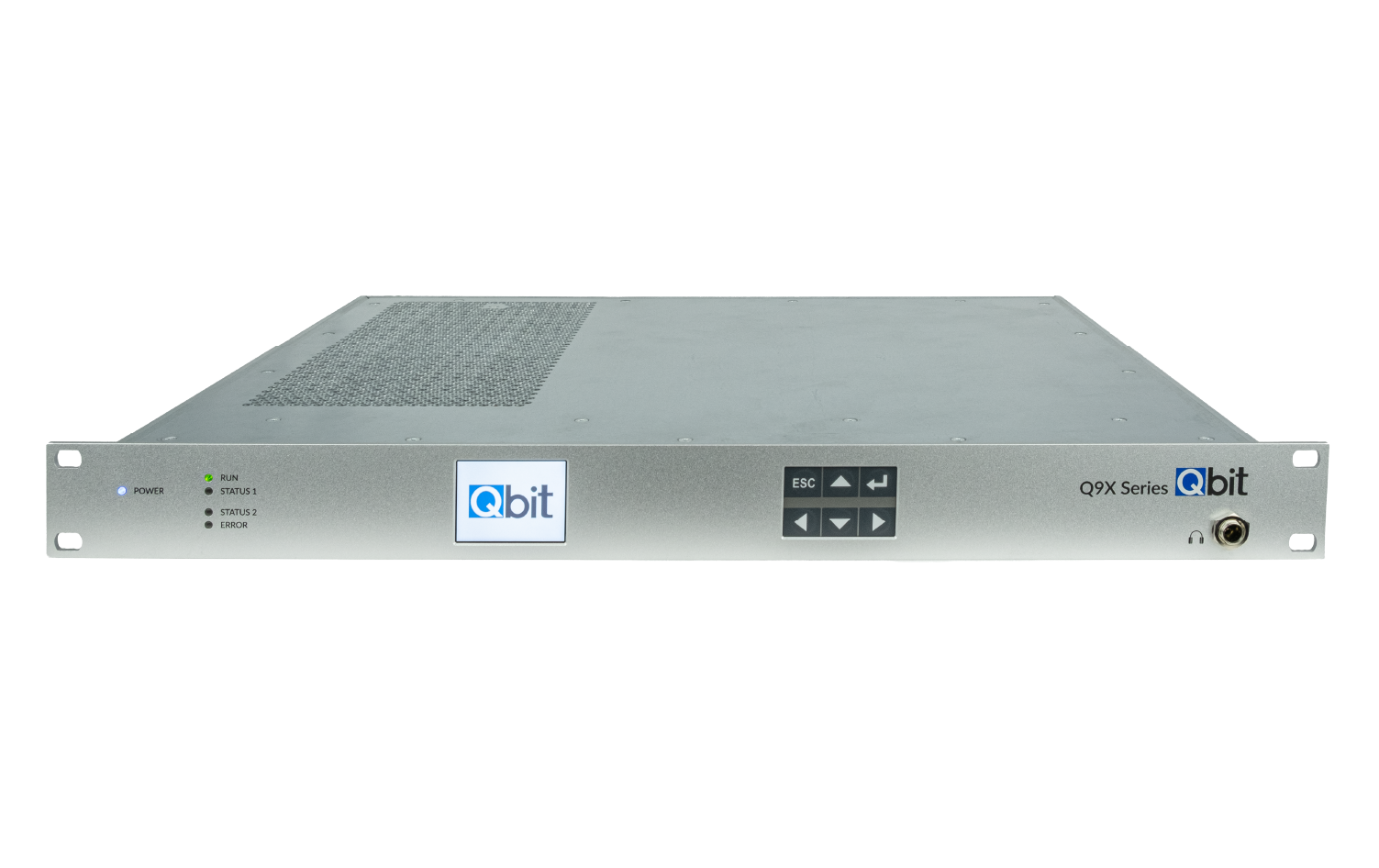

Qbit Product_Q9X-D – Front

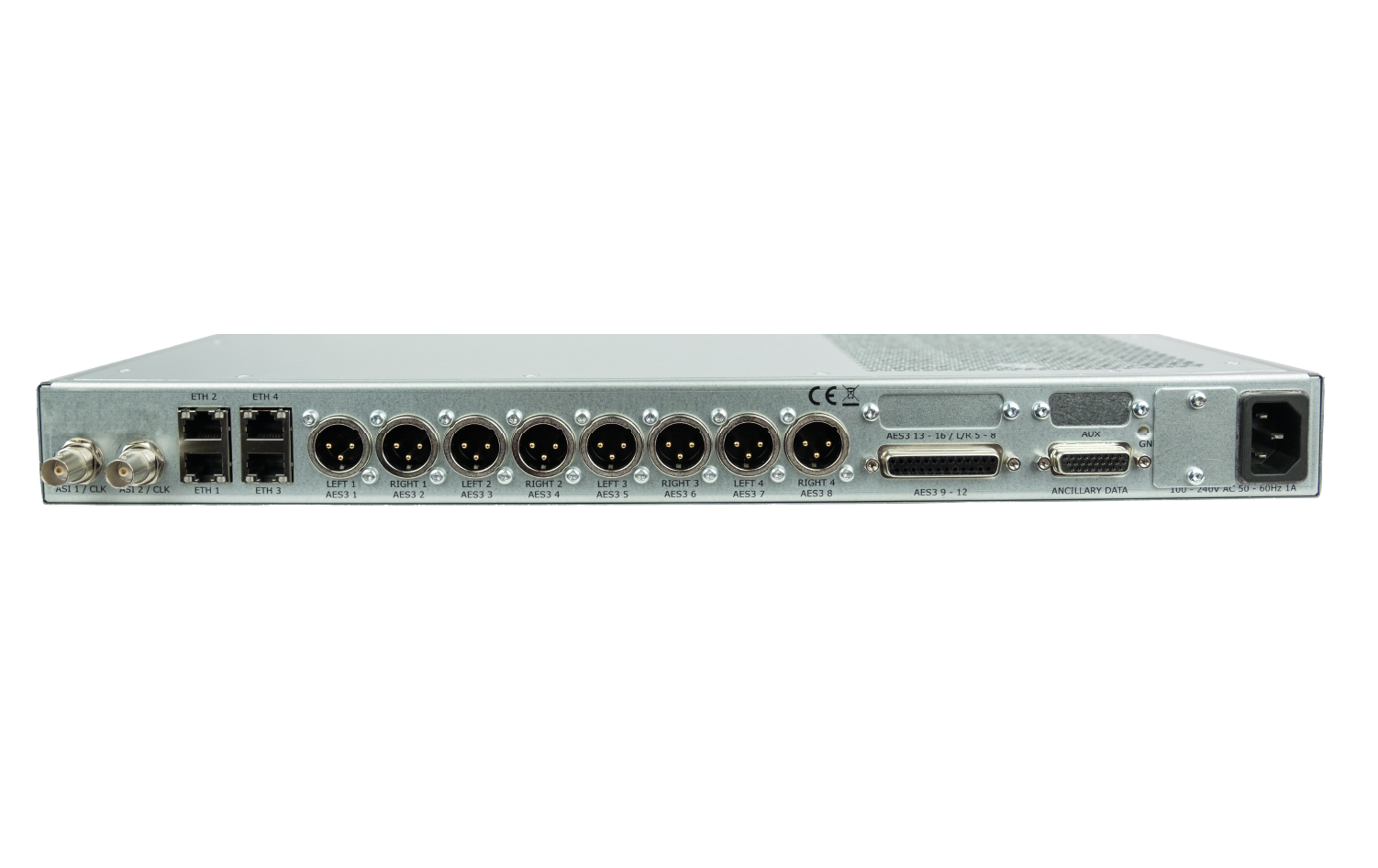

Qbit Product_Q9X-D Rear

Key Features

Reliable performance for modern broadcasting

Compact design delivers outstanding performance and efficiency, supporting demanding broadcast workflows with reliability and long-term operational flexibility.
Key Features_1

High density

Featuring up to 16 AES3 or 8 analog stereo outputs in 1RU, the Q9X-D delivers an unmatched density
Key Features_2

Flexible network options

4 freely assignable network interfaces allow for utmost flexibility
Key Features_3

Highly energy efficient

With less than 1W per channel, the Q9X series offers great energy efficiency, saving costs and the environment

Q9X-D Audio Decoder

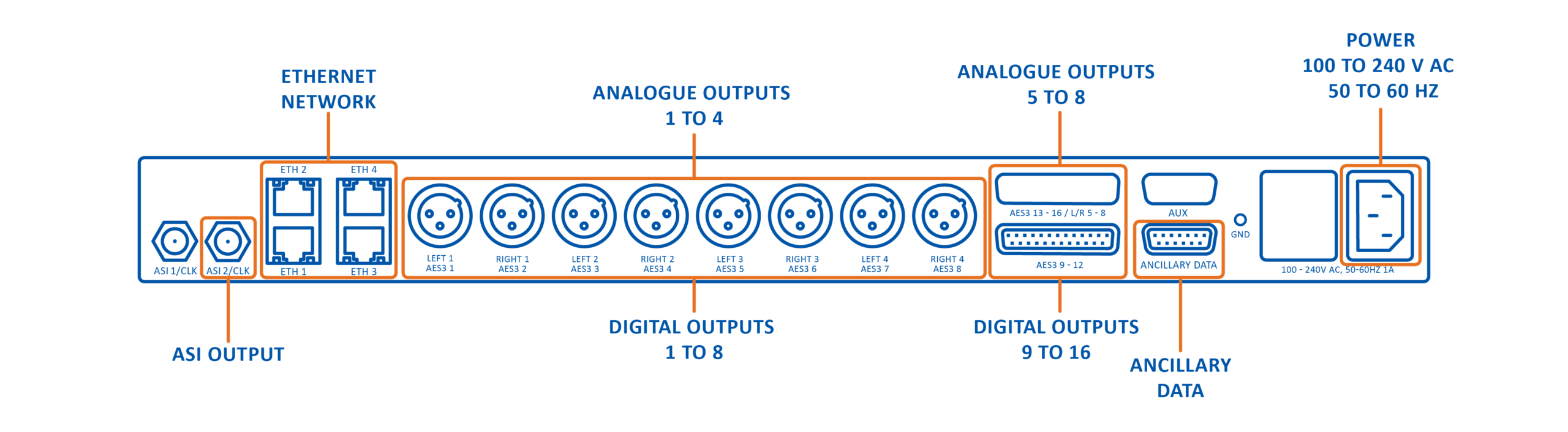

Connections

Convert networked audio into up to 8 analogue or 16 digital outputs.
Connections Diagram_Q9X-D Rear

Product Specifications

Up to 16 AES3 or 8 analog stereo outputs, with 8 AES3 or 4 analog stereo outputs on male XLR connectors and the remaining 8 AES3 or 4 analog stereo outputs on 2 25pin D-Sub connectors (TASCAM pinout)

  • RAVENNA/AES67
  • Icecast2, HLS, MPEG-DASH
  • DVB-compliant MPEG-2 Transport Stream (as per ISO 13818-1,
    ETSI EN 300 468)
  • Elementary Stream
  • MPEG-1/2 Layer I, II, III
  • AAC (AAC-LC, HE-AACv1, HE-AACv2, AAC-LD)
  • xHE-AAC
  • AC-3, E-AC-3
  • Opus
  • Linear PCM

HTML5 Web UI, REST API, SNMPv2c, NMOS IS-04/IS-05, EmBER+ (future option)

100-240V AC 50/60 Hz, optional redundant power supply
Power consumption: <20W

19″ 1RU Chassis
Size (W/D/H): 483mm/360mm/44mm
Weight: 6kg

Download Datasheet
Download Datasheet
