QAMOS Audio Monitoring System

QAMOS is a comprehensive broadcast monitoring system designed for modern, IP-based workflows. It provides browser-based control room views with intuitive visualisation of audio levels and signal metrics. Supporting true end-to-end monitoring across multiple signal types, QAMOS also enables multi-input recording of audio and bitstreams for detailed post-event analysis and troubleshooting.

Key Features

Advanced monitoring and control capabilities

Flexible, low-latency operation and seamless remote control designed for demanding studio and networked audio environments.

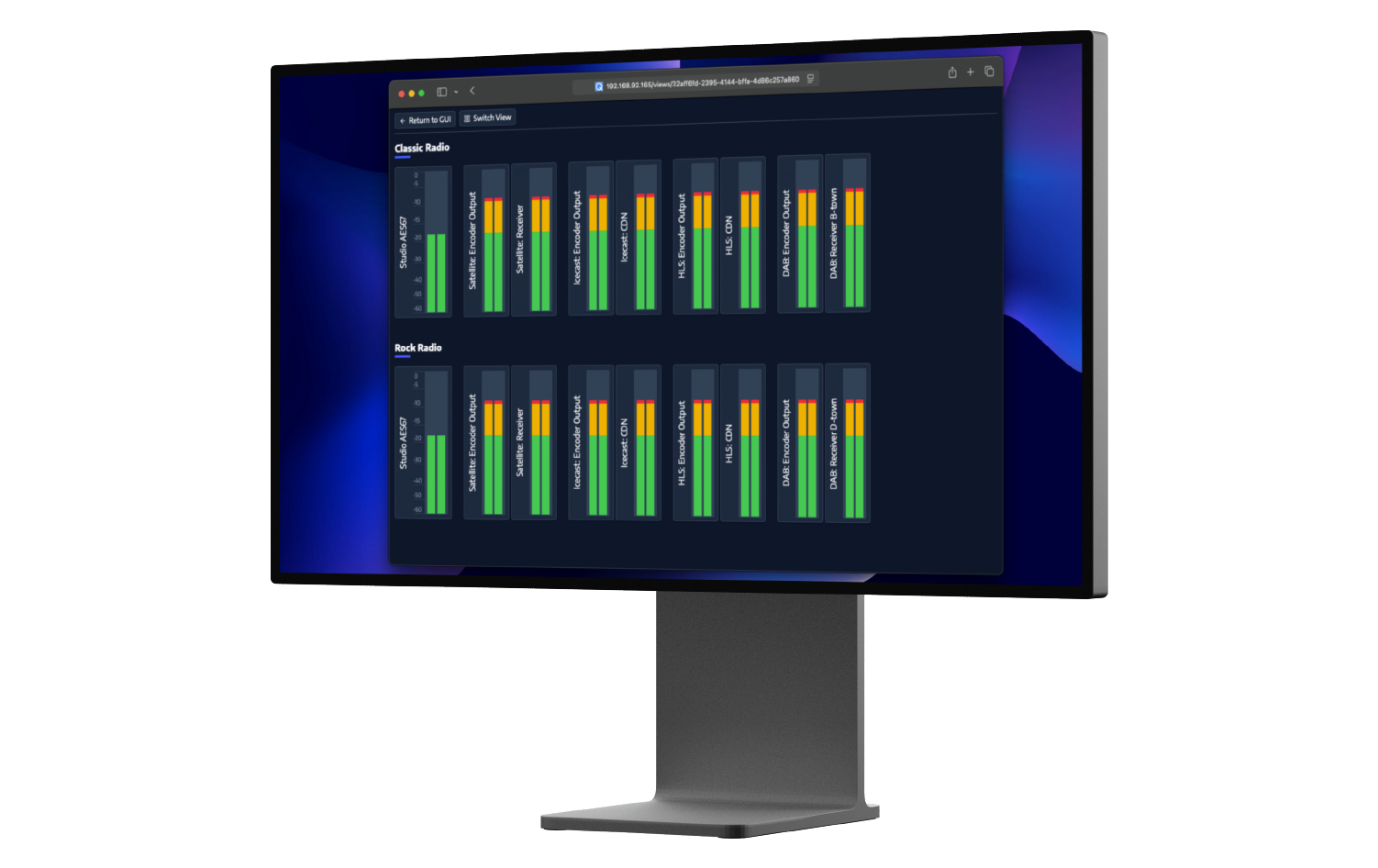

Browser-based control room views

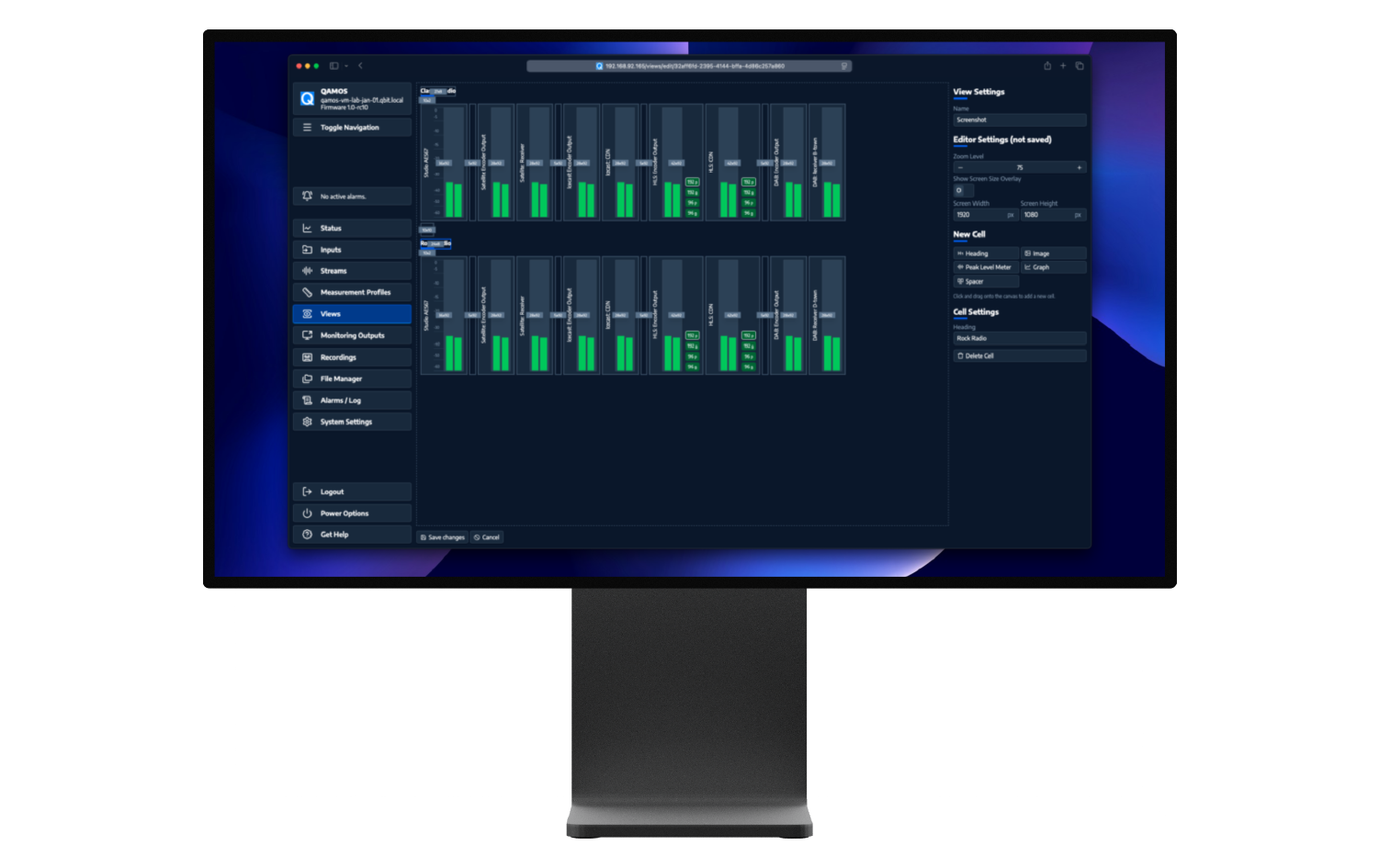

Create fully browser-based control room views featuring peak level meters, graphs and other metrics using an easy-to-use graphical editor

End-to-end monitoring

QAMOS is the one system to monitor all your signals end-to-end: Featuring RAVENNA/AES67, Web Streaming, MPEG-2 TS as well as EDI inputs, you can monitor everything you can think of

Recording

Using the multi-input recording feature, the audio as well as the incoming bitstream may be recorded for error analysis after the fact

Product Specifications

Input Protocols

RAVENNA/AES67
Icecast2, HLS, MPEG-DASH
MPEG-2 Transport Stream (as per ISO 13818-1)
EDI (ETI and STI-D, as per TS 102 693)

Input Codecs

Linear PCM (16, 24 and 32bit)
MPEG-1/2 Layer I, II, III
MPEG-2 AAC (AAC-LC, HE-AACv1, HE-AACv2, AAC-LD)
MPEG-4 AAC (AAC-LC, HE-AACv1, HE-AACv2, AAC-LD)
xHE-AAC
Opus
AC-3, E-AC-3

Measurements

Audio Peak Level
Audio Loudness (as per EBU R 128)
ETSI TR 101 290 (MPEG-2 TS Inputs)
IP Metrics (Jitter, IAT, PER)

Alarming Options

REST API
SNMPv2 Traps
Web Hooks (HTTP/HTTPS)

Deployment Options

Qbit-supplied Hardware
COTS Hardware
Virtual Machine
Cloud (Public or Private)

System Configuration, Control, Monitoring

HTML5 Web UI
REST API

Physical Parameters

19″ 1RU Chassis
Size (W/D/H): 483mm/360mm/44mm
Weight: 6kg

The multi-standard audio monitoring system.
