The compact RAVENNA node.

QARION Pro

The Qbit QARION Pro is a compact, professional RAVENNA network node that converts a single stereo channel between AES3 or analog baseband audio and RAVENNA/AES67 streaming, ideal for monitoring and studio use. Equipped with headphone output and microphone amplifier, it supports versatile IP audio workflows with robust web and remote control options, multiple network interfaces, and flexible integration into audio-over-IP environments.

Our Products

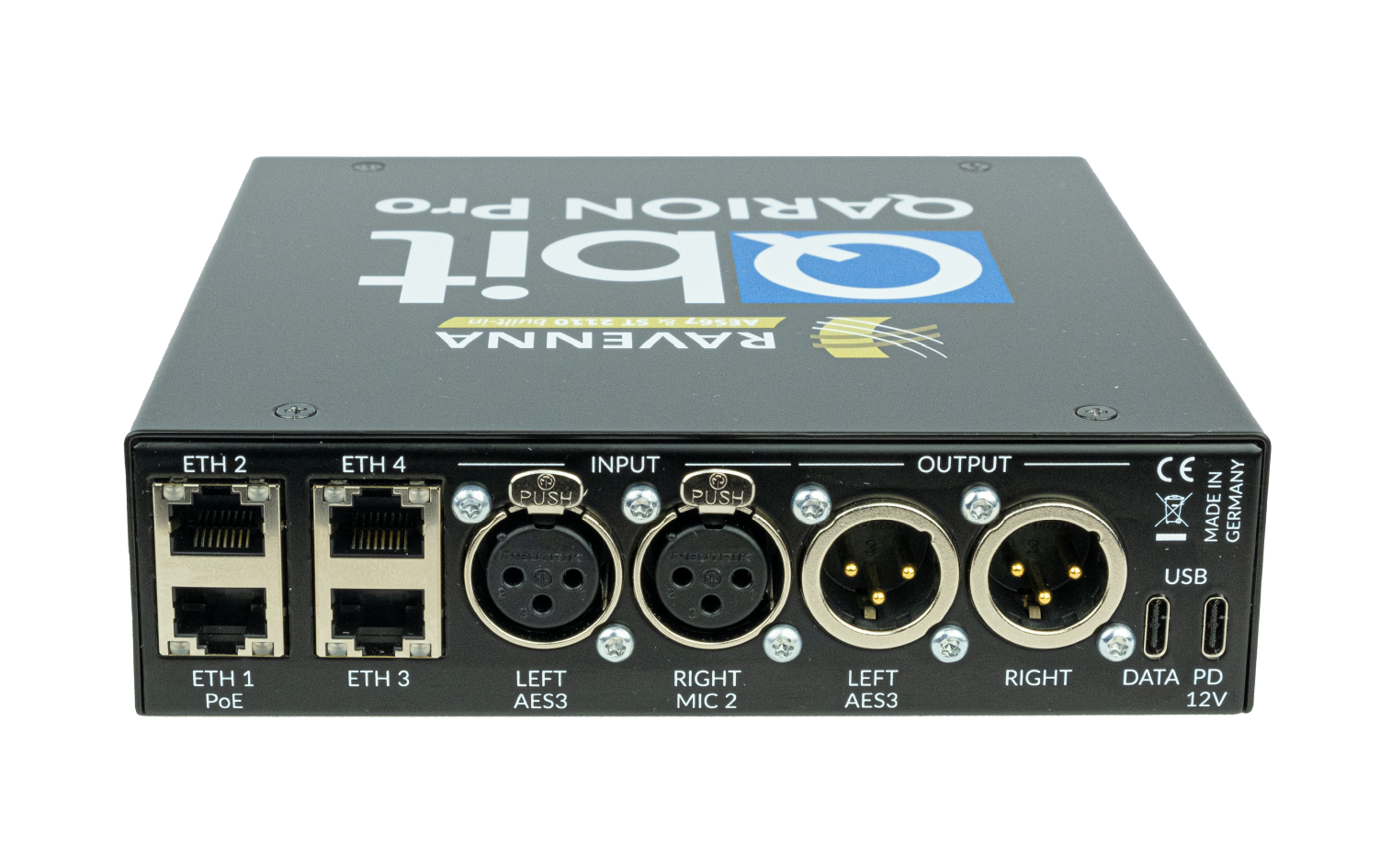

Qbit Product_QARION PRO – Back
Qbit Product_QARION PRO. -Angle

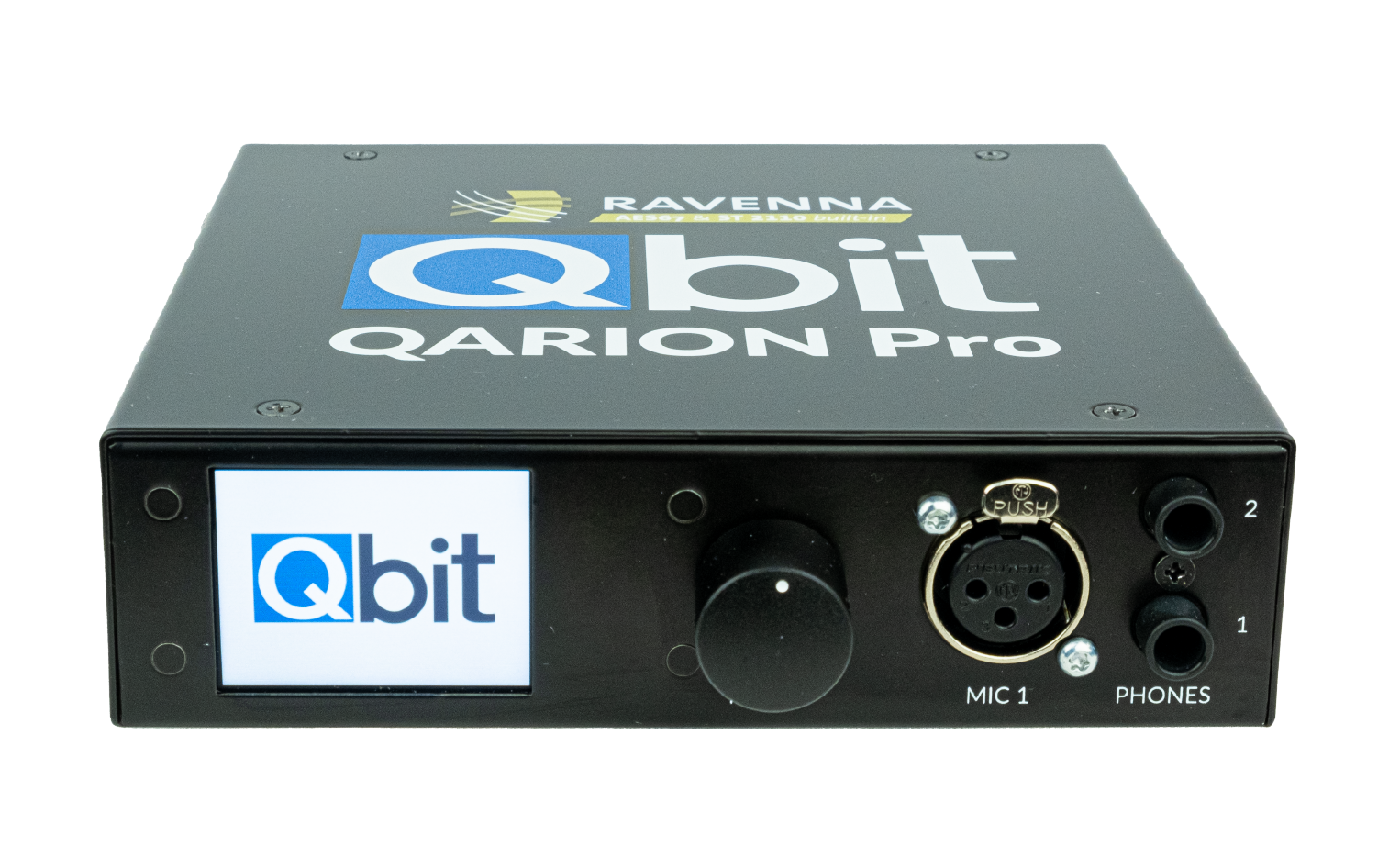

Qbit Product_QARION PRO

Key Features

Advance monitoring and control platform

QARION Pro delivers precise studio monitoring and seamless network integration, for reliable operation and intuitive remote control for professional applications.
Key Features_1

Dual Microphone Inputs

The QARION Pro optionally contains two fully software- controllable microphone pre-amplifiers
Key Features_2

Dual Headphone Outputs

The QARION Pro contains two independent headphone outputs for monitoring, including local low-delay mixing with the microphone signal, if present
Key Features_3

NMOS Support

Remote control using NMOS IS-04 and IS-05 is possible

QARION Pro

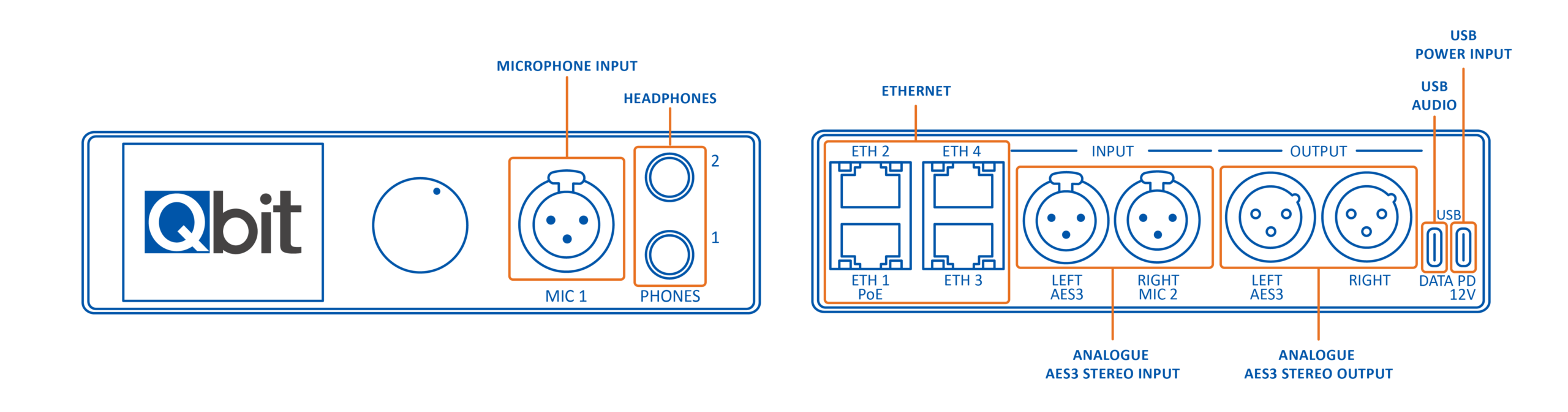

Connections

Comprehensive connectivity for local and networked audio sources and outputs in professional broadcast environments.
Connections Diagram_Qarion Pro Front & Back

Product Specifications

Audio Interfaces

One AES3 or analog stereo input channel, one AES3 or analog stereo output channel, dual headphones (6.25mm), dual microphones (optional), USB Audio over USB-C connector (class- compliant)

RAVENNA, Livewire+, AES67, ST2110-30/-31 compliant, up to 64 channels

HTML5 Web UI, REST API, SNMPv2c, NMOS IS-04/IS-05, EmBER+ (future option)

PoE (IEEE 802.3at, 30W), USB-C PD (12V)
Consumption: <10W

Size (W/D/H): 155mm/152mm/44mm
Weight: 0.5kg
